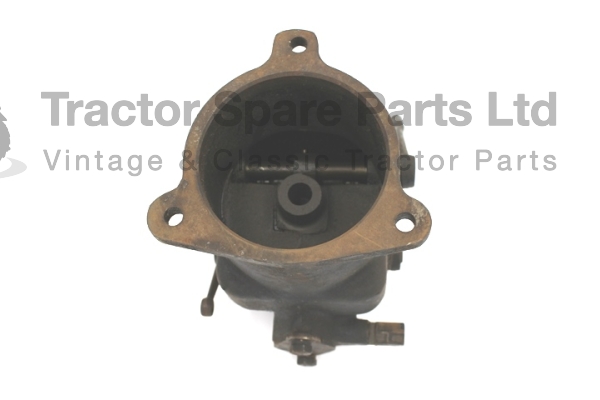

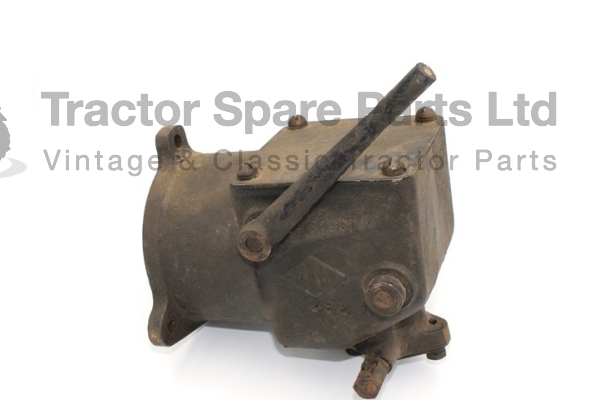

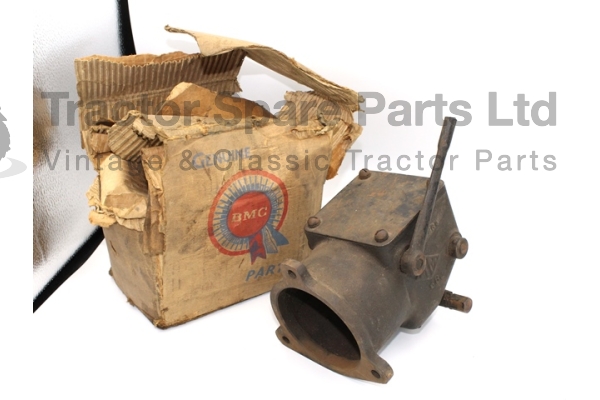

NT4206 - Governor rear end casing assembly. NEW - genuine old stock.
Fitted to Nuffield M4/M3 tractors
Consists of:
NT3669 casing
NT3008 bush
NT1859 flow adjusting screw
NT4224 washer
AJD8215N nut
NT4223 nut
NT4122 plate
NT1875 joint cover plate
AJD6154N bolt
LWN204 washer
NT1307 plate cover casing top
NT1308 joint cover plate
AJD1403N screw
LWN204 screw
NT4624 lever assembly actuating including NT1290 button, AJD8104N nut, NT3098 pin
NT4222 ring lever assembly sealing
NT4627 lever assembly fork including NT3098 pin,
NT4222 ring
NT3112 spring
NT1877 piston damper
NT3090 washer
ATJ9322 pin

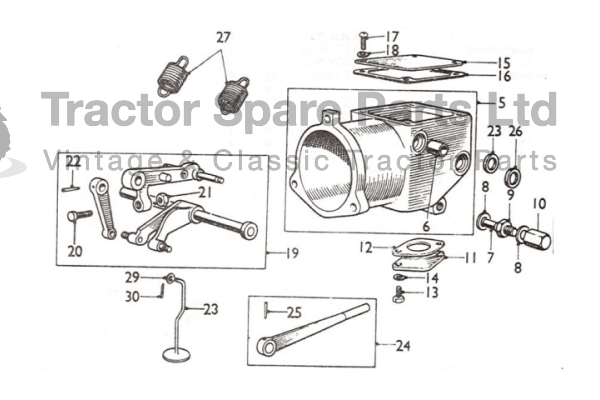

See also pictures/diagram
For a You Tube video showing how to set the governor, please click click here.
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
Product images are for illustrative purposes only and may not always be an exact representation of the product.
