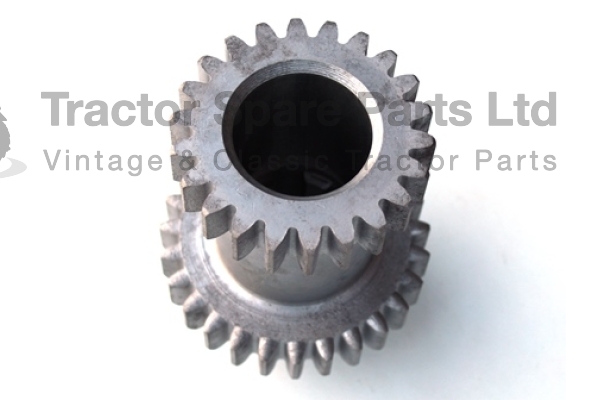

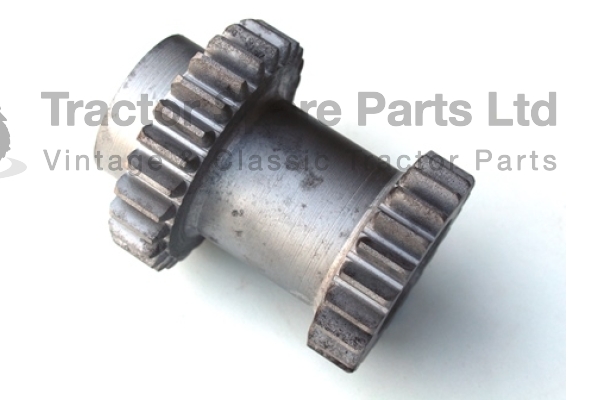

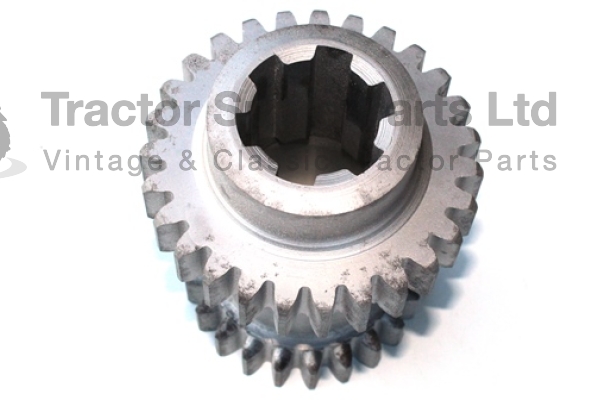

2nd and 3rd gears were fitted to the Nuffield models with a 5-speed gearbox and a single clutch.
Fitted to the Nuffield 4M, 4PM and 4DMÂ Perkins - 1st type gearbox (see drawing)
Gear details -
27 teeth at a diameter of 106.63mm (4.198")
22 teeth at a diameter of 89.24mm (3.513")
Inner spline diameter 46.6mm 6 splines
Bore size 46.9mm
Overall length 131.3mm (5.169")
Note: This item is new "old" stock (over 60 years old). It has some surface rust from age and storage. This is the only one we have available.
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
Product images are for illustrative purposes only and may not always be an exact representation of the product.
