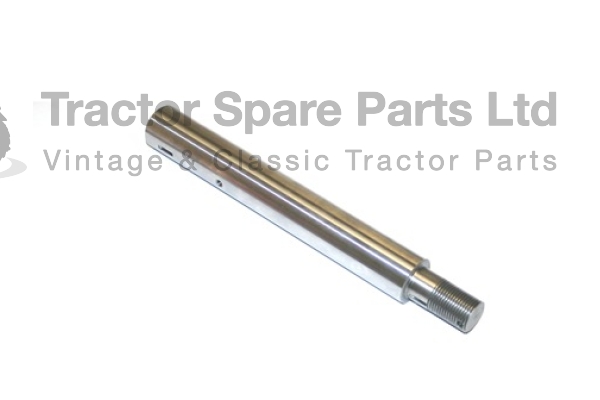

NT4854 - Front axle trunnion pin, now manufactured with a 'hard chrome finish' for reduced wear.
Manufactured in the UK
Fitted to the following tractors:
Nuffield M4, PM4, DM4, 3DL, 4DM, 342, 460, 10/42, 10/60
For trunnion pin key, see part No. WKN505.
Only one key is required per pin. Although each pin has a slot at both the front and rear, the correct slot depends on the engine type: on a 4-cylinder tractor, the key is fitted in the front slot, while on a 3-cylinder tractor, it is fitted in the rear slot next to the thread.
Note for pivot pin bush: see part No. NT3004

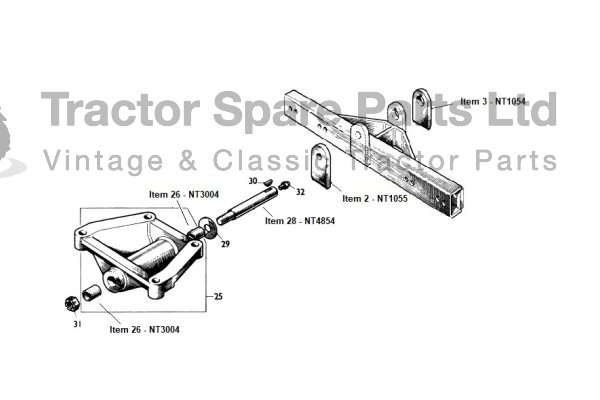

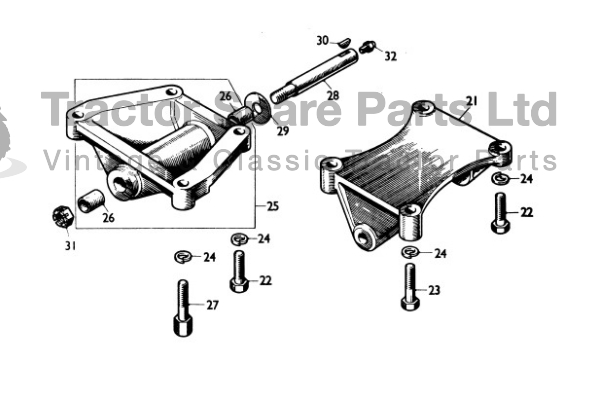

See item 28 on the diagram
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
Product images are for illustrative purposes only and may not always be an exact representation of the product.
