BTJ2219 - Angle Drive

Need it delivering elsewhere? Click here

---

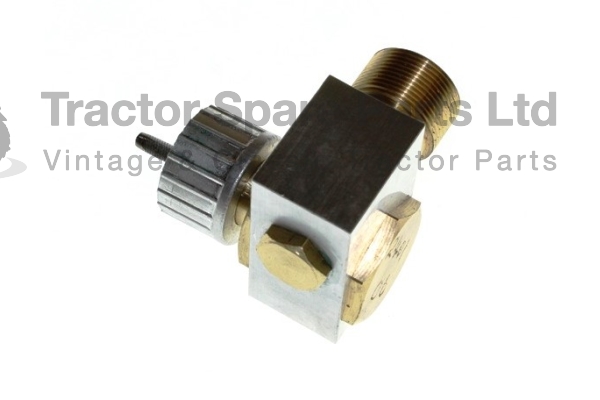

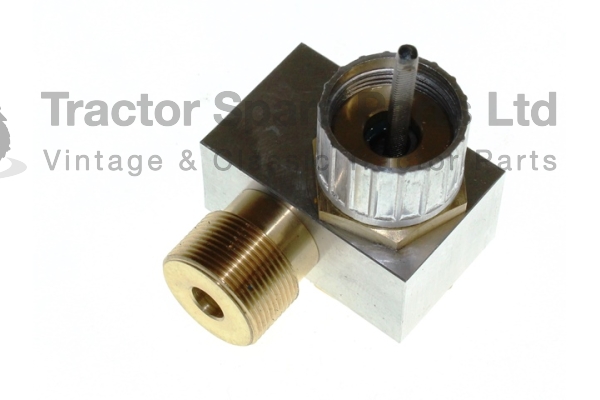

BTJ2219 Tractometer Angle Drive (2:1 Ratio) for BMC Mini Tractor

Quality replacement 2:1 ratio angle drive for the original tractometer fitted to the BMC Mini tractor.

The angle drive transfers the drive from the engine to the tractometer cable, allowing the original dashboard gauge to accurately display engine speed and record operating hours. It is an ideal replacement for worn or damaged original units.

Important Information

• 2:1 ratio angle drive
• Suitable for the original tractometer fitted to the BMC Mini tractor.
• The angle drive is located behind the oil filter housing.

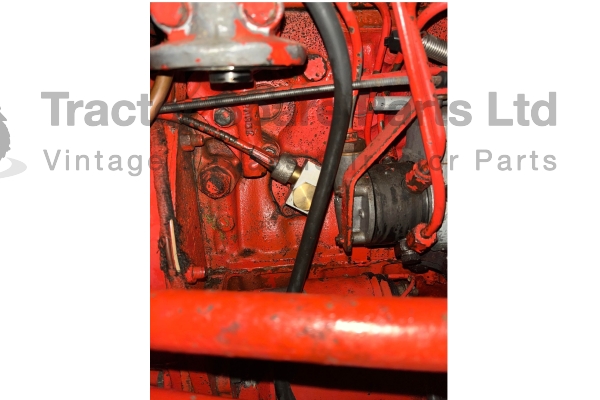

• One of the product photographs shows the angle drive location with the oil filter removed for easier identification.
• We recommend attaching the tractometer cable to the angle drive before fitting the angle drive to the engine, as access is much easier.

Applications

Suitable for:

• BMC Mini Tractor

Features

• Quality replacement tractometer angle drive
• Correct 2:1 drive ratio
• Restores drive to the original tachometer/hour meter
• Manufactured for reliable fit and smooth operation
• Ideal for repairs, maintenance and restoration projects

Additional Information

The angle drive is a small but essential component of the original mechanical tractometer system. Over time, the internal gears can wear or seize, resulting in an inoperative rev counter or hour meter.

Replacing a faulty angle drive helps restore accurate engine speed readings and hour recording, preserving the functionality of the original instrument panel.

Ideal for customers searching for BTJ2219 angle drive, BMC Mini tractometer drive, BMC Mini rev counter drive, tractor tachometer angle drive, 2:1 angle drive, mechanical tachometer drive and classic tractor instrument parts.

We specialise in quality parts for Nuffield, Leyland and Marshall tractors and aim to supply reliable tractor spare parts that fit correctly and perform reliably.
