433 0228 10 David Brown 11" (279.4 mm) Pressure Plate Repair Kit

433 0228 10 is a pressure plate repair kit for selected David Brown tractors fitted with the 11" (279.4 mm) dual clutch assembly, part number 128 0045 50. This comprehensive kit contains the main wear components required to overhaul the original pressure plate assembly, allowing you to retain and rebuild your existing clutch rather than replacing the complete unit.

Rebuilding the original clutch assembly can be a cost-effective option when the main pressure plate housing and operating mechanism remain in good condition.

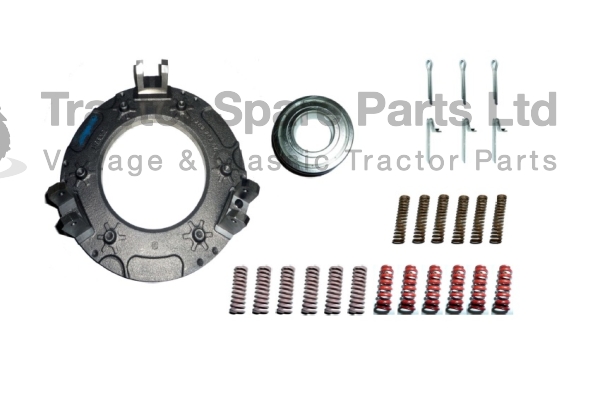

Kit Contents

The kit contains the following components:

• 1 × K961046 – Pressure Plate (Item 21)
• 1 × K89325 – Release Bearing (Item 26)Coil Spring -items 6,7 and 8 on diagram)
• 6 × K902514 – Pink Coil Springs
• 6 × K928922 – Brown Coil Springs
• 6 × K902513 – Brown Coil Springs
• 3 × Split Pins
• 3 × Retaining Clips

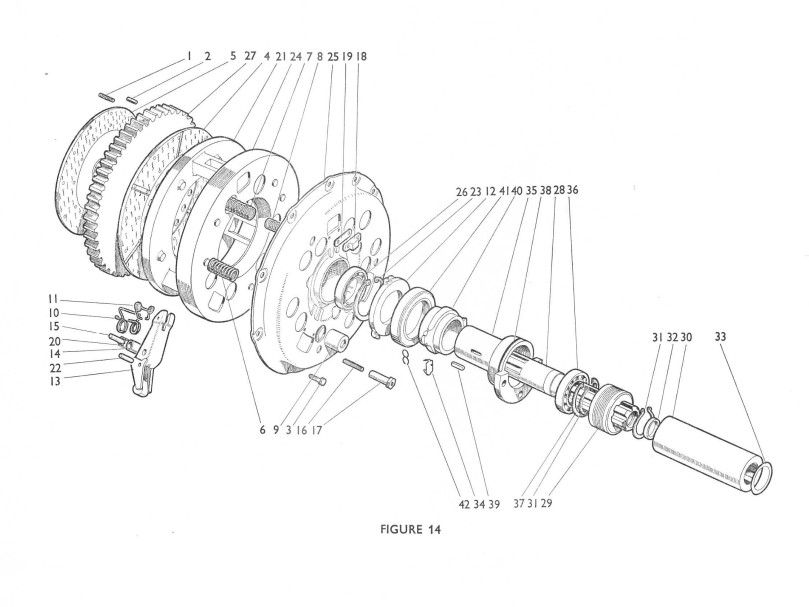

For an exploded parts diagram showing the individual clutch components click here

Fitted to the following tractor models

• David Brown 900
• David Brown 990
• David Brown 995
• David Brown 1290
• David Brown 1294
• David Brown 1390

Related Parts

• K957252 – Complete 11" (279.4 mm) Dual Clutch Assembly




Important Information

• Pressure plate repair kit for 11" (279.4 mm) dual clutch assemblies
• Suitable for clutch assembly 128 0045 50
• Allows the original pressure plate to be rebuilt
• Contains replacement pressure plate, release bearing, springs and fitting hardware
• Ideal where the original clutch assembly is suitable for refurbishment

Technical Notes

This repair kit is intended for tractors fitted with the 11" (279.4 mm) dual clutch assembly (128 0045 50). It replaces the principal wear components within the pressure plate, making it an excellent choice when the original clutch cover and operating mechanism are still in good condition.

Replacing worn springs, the pressure plate and release bearing can restore clutch performance and extend the service life of the original assembly without the expense of purchasing a complete clutch unit.

If the clutch cover, levers or main assembly have suffered excessive wear, damage or distortion, replacing the complete clutch assembly with K957252 may be the more practical solution.

Before ordering, please confirm that your tractor is fitted with the 11" (279.4 mm) clutch assembly, part number 128 0045 50, as other clutch assemblies were fitted to different David Brown models.

We specialise in replacement clutch components for classic David Brown tractors and stock complete clutch assemblies, repair kits and individual clutch parts to help keep your tractor working reliably.
