86K937 Cylinder Liner for Leyland 4/98 and Leyland 6/98 Engines

Quality replacement cylinder liner suitable for Leyland 4/98 DT, 4/98 NT, 6/98 DT and 6/98 NT diesel engines fitted to Leyland tractors and other classic British agricultural machinery.

This engine liner is manufactured for reliable fit, sealing and long service life during engine rebuild and restoration work.

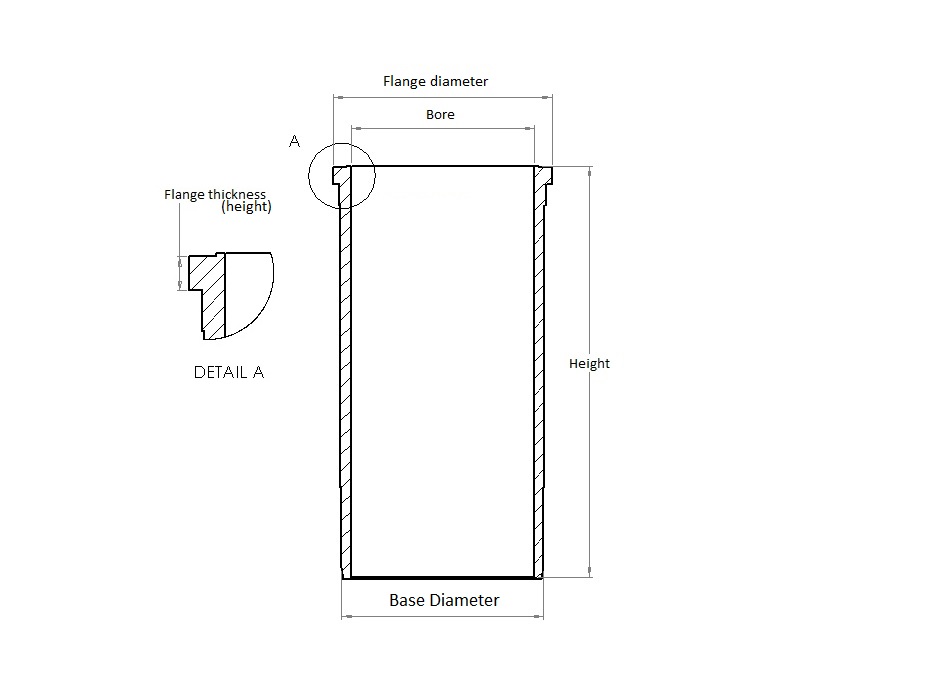

Technical specifications:

• Bore size: 97.97mm (3.857”)
• Flange diameter: 117.09mm (4.610”)
• Flange height: 8.89mm (0.350”)
• Outside diameter at liner seal contact area: 108.25mm (4.262”)
• Overall height: 221.50mm (8.720”)

Other parts commonly used with 86K937 liner:

Top seal ring:

• CAL8963

Bottom seal ring:

• CAL8964

Piston:

• 96K570

Piston ring set:

• AHM9014

Liner shims available:

• 89J88 – 0.003”
• 89J89 – 0.004”
• 89J90 – 0.005”

Features:

• Quality replacement wet cylinder liner
• Suitable for Leyland 4/98 and 6/98 diesel engines
• Manufactured for reliable fit and sealing performance
• Ideal for engine overhaul and rebuild work
• Suitable for vintage tractor restoration projects

Important:

Always check liner dimensions and engine specifications carefully before ordering.

If you are unsure which liner is fitted to your engine, please contact us and we will be happy to help identify the correct parts for your tractor or engine rebuild.

Suitable for customers searching for Leyland engine liners, Leyland 4/98 engine parts, Leyland 6/98 engine parts, cylinder liners, wet liners, vintage diesel engine rebuild parts, tractor engine overhaul parts and replacement agricultural engine components.

We specialise in quality parts for Nuffield, Leyland and Marshall tractors and aim to supply reliable tractor spare parts that fit correctly and perform reliably.
