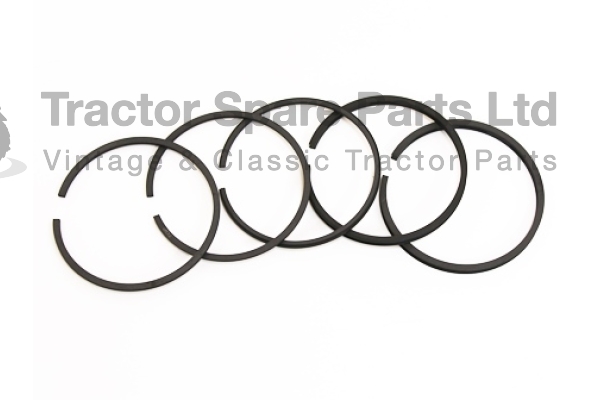

8G2503 - STANDARD Leyland 1500D diesel piston ring set (for one piston).
BMC 1500 diesel piston ring set, fits standard bore size of 2.8745 to 2.8760" (73.012 to 73.05mm)
Also listed as part No BHM1169, R17710, 12H249, 12H250, 12H251
Fitted to the following tractors:
Nuffield 425
Leyland 154
Also fitted to:
BMC 1500 diesel engine
Thornycroft 90 and Thornycroft 90/2
Austin A60 Cambridge
Morris Ital 1.5
Morris Marina 1.5
Morris Oxford 1.5
Piston ring fitted gap:
No. 1 compression ring       - 0.012" to 0.020" (0.30mm to 0.51mm)
No. 2 and 3 compression rings - 0.008" to 0.013" (0.20mm to 0.33mm)
No. 4 and 5 oil control rings   - 0.008" to 0.013" (0.20mm to 0.33mm)
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
