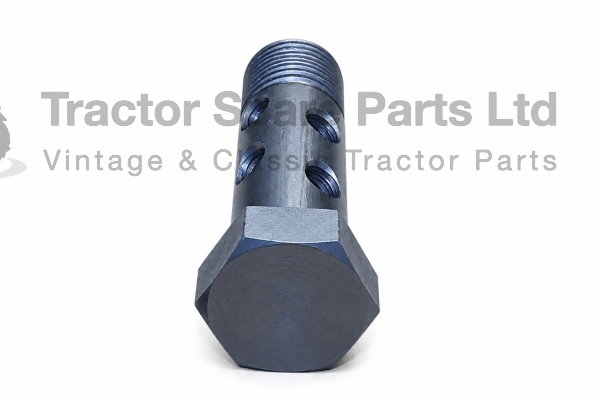

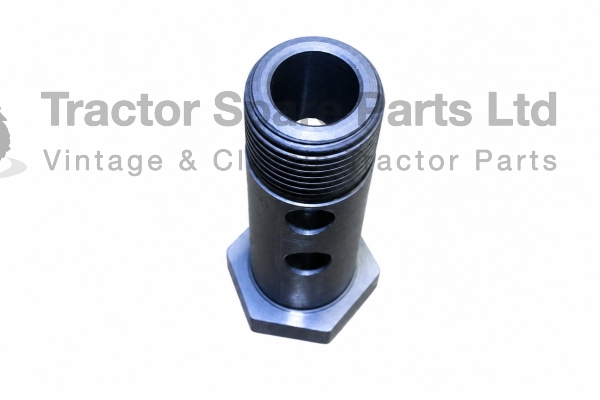

CTJ4466 Double Banjo Bolt for Leyland & Marshall Tractors

Quality replacement double banjo bolt suitable for the hydraulic systems fitted to a range of Leyland and Marshall heavyweight tractors.

CTJ4466 feeds 2 assistor rams on the Leyland 285, 485, 2100, 4100 and 1 assistor ram on the Leyland 282 & 482 models.

This banjo bolt is commonly used on hydraulic valve chest assemblies and hydraulic assistor rams, making it an important component for maintaining reliable hydraulic performance.

Manufactured to the correct specification for classic British tractors, this fitting is ideal for repairs, restoration projects and routine hydraulic system maintenance.

Specifications

• Part number: CTJ4466
• Type: Double banjo bolt
• Internal diameter: 1/2" (12.7mm)

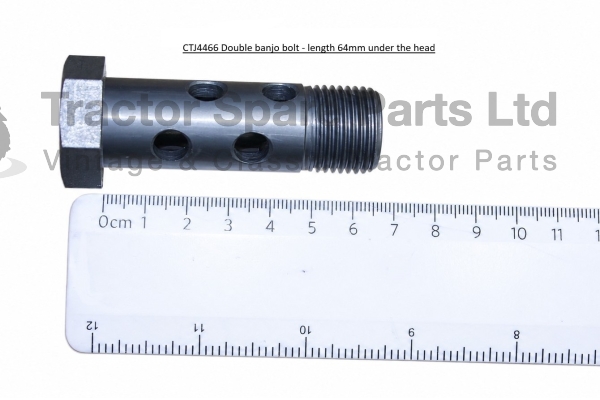

• Length under head: 64mm (2.520")
• Hydraulic system fitting
• Suitable for original Leyland and Marshall hydraulic applications

Suitable For

Leyland Tractors - The banjo feeds 2 assistor rams on the models below

• Leyland 285
• Leyland 485
• Leyland 2100
• Leyland 4100

Leyland Tractors - The banjo feeds 1 assistor ram on the models below

• Leyland 282
• Leyland 482

Marshall Tractors

• Marshall 954

Hydraulic Assistor Ram Applications

Leyland Tractors

• Leyland 245
• Leyland 255
• Leyland 262
• Leyland 270
• Leyland 272
• Leyland 462
• Leyland 472

Marshall Tractors

• Marshall 602
• Marshall 702
• Marshall 802
• Marshall 604
• Marshall 704
• Marshall 804

Additional Applications

Also used as the tipper pipe fitting on most tractor models fitted with ATJ6772/A hydraulic pipe assemblies.

Associated Parts

Recommended related parts:

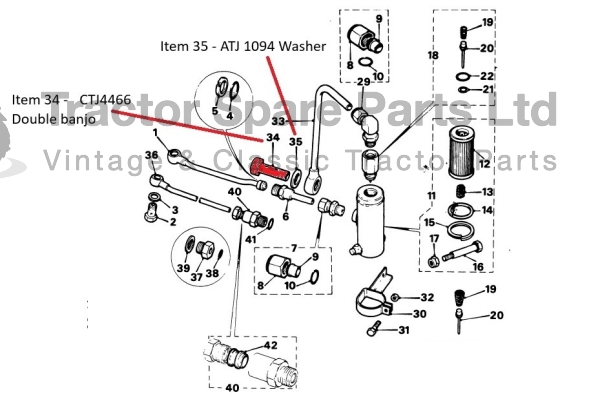

• ATJ1094 Sealing Washer
• CTJ4348 Valve Chest Filter
• ATJ6772/A Hydraulic Tipper Pipe Assembly

Important Information

Please check the length under the bolt head measures 64mm (2.520") before ordering, as similar banjo bolts were used in different hydraulic applications.

When replacing hydraulic fittings, we recommend inspecting sealing washers and associated hydraulic components to ensure a reliable, leak-free installation.

If you are unsure whether this banjo bolt is suitable for your tractor or hydraulic system, please contact us before purchasing and we will be happy to advise.

We specialise in quality parts for Nuffield, Leyland and Marshall tractors, including genuine old stock, reproduction and hard-to-find replacement parts.

Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.

Product images are for illustrative purposes only and may not always be an exact representation of the product.

Note:

See ATJ6778 Single banjo bolt

Fitted to the following tractors:
Leyland 245, 262, 462, 272, 472, 282, 482
Leyland 602, 702, 802, 604, 704, 804
Marshall 602, 702, 802, 604, 704, 804
