JAM1378 - Camshaft for the BMC 1800 engine fitted after serial number D19001. Please check journal sizes before ordering as there are two different camshafts that were fitted to the 1800 engine.
This camshaft does not have an angle drive gear, for original Marshall camshaft see JAM1871

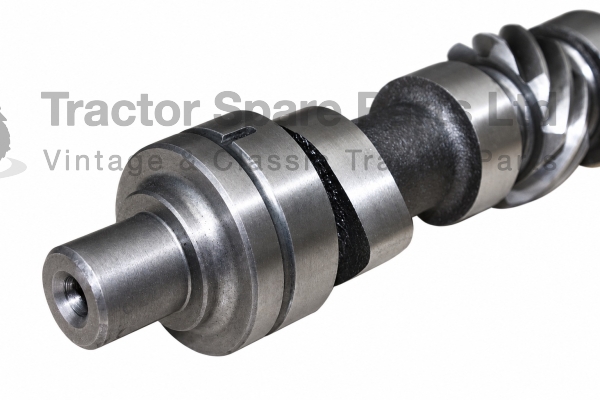

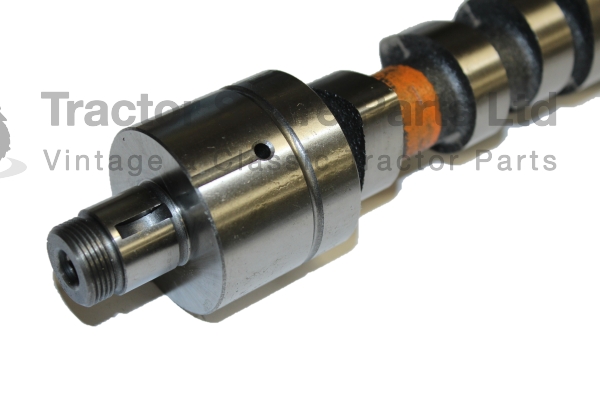

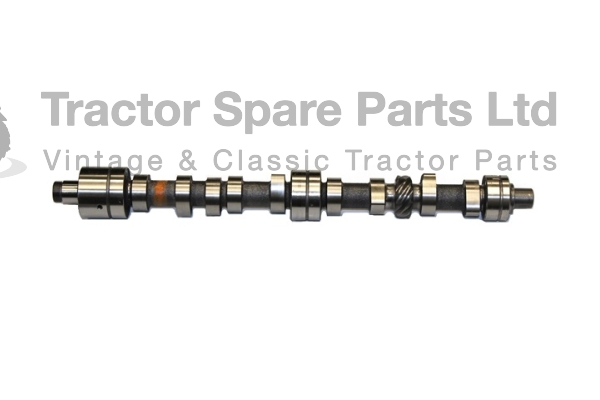

Please see all pictures.
Journal diameters:-
Front 1.95125" to 1.95175" (49.652mm to 49.574mm)
Centre 1.91975" to 1.92025" (48.762mm to 48.774mm)
Rear 1.72875" to 1.72925" (43.910mm to 43.923mm)
Important check oil pump drive details below before ordering
Diameter of the oil pump drive gear 1.510" (38.37mm)
Number of teeth 9, the oil pump driven gear will also have 9 teeth.
Fitted to following tractors as an alternative to JAM1871:
Leyland 184, 235, 302
Marshall 302
Also fitted to:
Narrow boat engines
Thornycroft 108 engine
Sherpa Van
See 2A13 for cam follower
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
Product images are for illustrative purposes only and may not always be an exact representation of the product.
For early camshaft see 62H548
Marshall 302 camshaft with angle drive pick up journal see JAM1871
