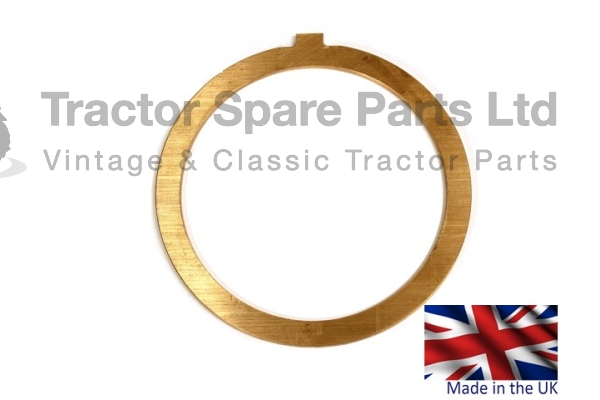

ABU9634 +0.024" Crank thrust washer - 3mm thick (+0.024"). This thrust washer is used when the crankshaft thrust face has to be reground.Â
Fitted to the Leyland 3.4TD, 3.8TD, 4/98 and 6/98 engines.
Made to Order - 10 day lead time - when ordering also order ABU9634 as these will be required for the other side of the crankshaft
Made from Phosphor Bronze PB102
Fitted to the following tractors:
Nuffield 3/45, 4/65
Leyland 344, 384, 255, 270, 262, 462, 272, 472, 282, 482, 285, 485, 2100, 4100
Leyland 602, 604, 702, 704, 802, 804
Marshall 602, 604, 702, 704, 802, 804, 904XL, 100, 115, 125
JCB part no 2300117
Also fitted to BMC 2.8, 3.4, 3.8, 5.1 and 5.7 engines.
Note early 3.4, 3.8, 2.8, 2.6 BMC engines were fitted with part no 37D154 x2 & 37D155 x2.
NOTE: Crankshaft end-float should be between 0.008" and 0.015" (0.20 mm to 0.38 mm).Â
Please check before ordering, if in doubt ring and ask.
Â
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
This is a circular thrust washer shim and it fitted behind the standard sized thrust washers. Therefore the crankshaft has to be removed in order to fit this shim.
