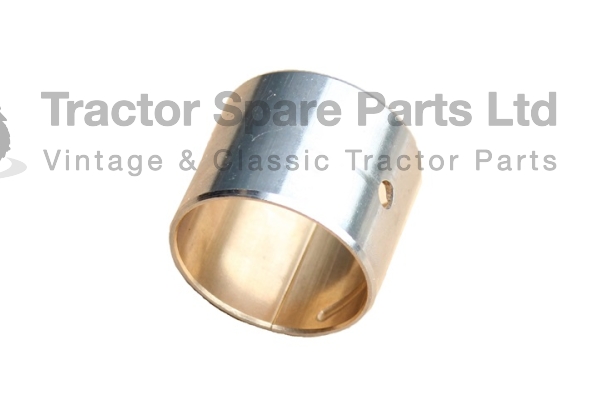

Small End Bush – AHM9042

This quality replacement small end bush is fitted to the connecting rod on Leyland 4/98 and 6/98 engines with 3 or 4 ring pistons.

Important Information

• For Leyland 4/98 and 6/98 engines with 3 or 4 ring pistons
• The bush must be machined to size after fitting into the connecting rod
• Outside diameter: 39.79 mm (1.567")
• Internal diameter after machining: 36.5 mm (1.437") – refer to the workshop manual for final tolerance
• Recommended gudgeon pin to small end bush clearance: 0.034–0.04 mm (0.0013–0.0016")
• For earlier engine applications, see Small End Bush – 37D3037

Fitting Information

Correct fitting and final machining of the small end bush are important when rebuilding the connecting rod assembly.

If you do not have the facilities to machine the small end bushes after fitting, we can offer fitting and machining in our workshop. Please contact us for further details.

Watch our YouTube video for further information on connecting rods, small end bushes and engine bearings

Fitted to the following tractor models:

Leyland

• 282
• 482
• 602
• 604
• 702
• 704
• 802
• 804

Marshall

• 602
• 604
• 702
• 704
• 802
• 804
• 100
• 115
• 125

Engine Applications

• Leyland 4/98 – with 3 or 4 ring pistons
• Leyland 6/98 – with 3 or 4 ring pistons

Part Number Cross-References

• JCB part number: 02/392002

Related Parts

• Earlier Engine Small End Bush – 37D3037
