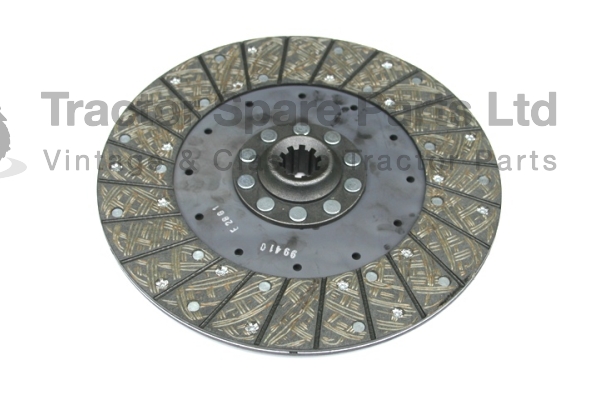

ATJ5479 - Clutch plate for the 11" clutch units fitted to the Nuffield, Leyland and Marshall tractors.Â
11" rigid type, centre shaft size x 1 1/8" with 10 splines. Asbestos-free.
If you have a Marshall tractor, please check that your tractor is fitted with an 11" main clutch plate, as some Marshall tractors were fitted with a 12" clutch.Â
Fitted to tractors with a dual clutch assembly (independent PTO clutch plate).Â
Fitted to the following tractors:
Nuffield 3DL, 4DM, 342, 460, 10/42, 10/60, 3/45, 4/65
Leyland 344, 384, 253, 245, 255, 270, 262, 462, 272, 472, 282, 482
Leyland 502, 602, 702, 604, 704, 802, 804. Note, these tractors can also be fitted with the 12" clutch plate NTK1459
Marshall  502, 602, 604, 702, 704, 802, 804. Not,e these tractors can also be fitted with the 12" clutch plate NTK1459
Plate thickness when new is 8.5mm
Replaces old part numbers 7H3286 and ATJ4713
LUK part number 328 0239 10
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
Product images are for illustrative purposes only and may not always be an exact representation of the product.
Please open the following links for pictures showing which way to fit the clutch plate
Or follow this link to our blog which explains which way the clutch plates are fitted.
*** The side of the clutch plate with a flange on goes into the clutch cover. The flat side goes to the flywheel.***
