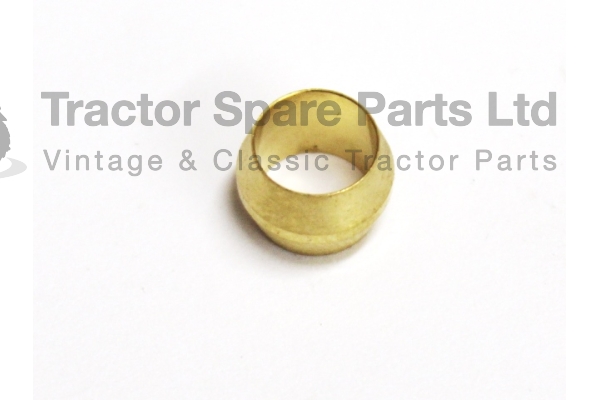

BTJ2167 - Fuel tap olive to suit 1/4 (6.35mm) pipe. Note also listed as part numbers BMK605, 83H662
Fitted between the lift pump and the filter head, the filter head to the injection pump on middle and heavyweight tractors.
Fitted as the main fuel tap feed line olive on the lightweight tractors.
Fitted to the following tractors:
BMC Mini
Nuffield 4/25
Leyland 154, 253, 245, 255, 270, 262, 272, 282, 344, 384, 462, 472, 482, 285, 2100, 485, 4100
Marshall 302, 502, 602, 604, 702, 704, 802, 804, 904XL, 100
See item 42 on the diagram
Quality replacement brass compression olive suitable for 1/4" (6.35mm) fuel pipe used on a wide range of Nuffield, Leyland and Marshall tractors.
The olive compresses around the fuel pipe as the compression nut is tightened, creating a secure, leak-free seal. It is suitable for several different fuel system applications depending on the tractor model.
This olive is used in two different fuel system applications depending on the tractor model.
Used on middleweight and heavyweight tractors between:
Used as the main fuel tap feed line olive on the Lightweight range:
For a complete compression fitting, use with:
Using the correct pipe, nut and insert helps ensure a secure, leak-free fuel system.
Compression olives deform as they are tightened, creating the seal between the pipe and fitting. For this reason, they should generally be replaced whenever a fuel pipe is dismantled, rather than reused, to help prevent fuel leaks.
Ideal for customers searching for BTJ2167 fuel olive, BMK605 olive, 83H662 olive, 1/4 fuel pipe olive, Leyland fuel pipe fitting, Marshall fuel olive, Nuffield compression olive, tractor fuel pipe fittings and vintage tractor fuel system components.
We specialise in quality parts for Nuffield, Leyland and Marshall tractors and aim to supply reliable tractor spare parts that fit correctly and perform reliably.
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
Product images are for illustrative purposes only and may not always be an exact representation of the product.
