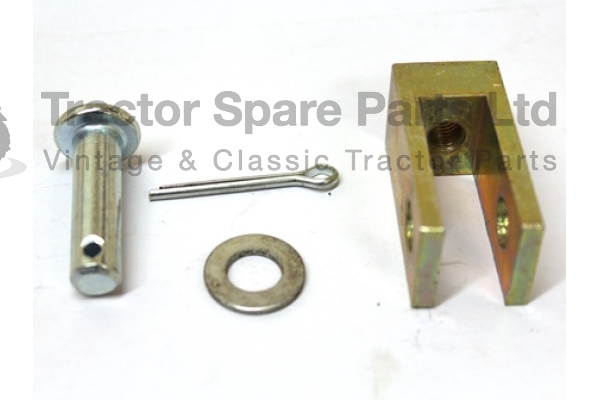

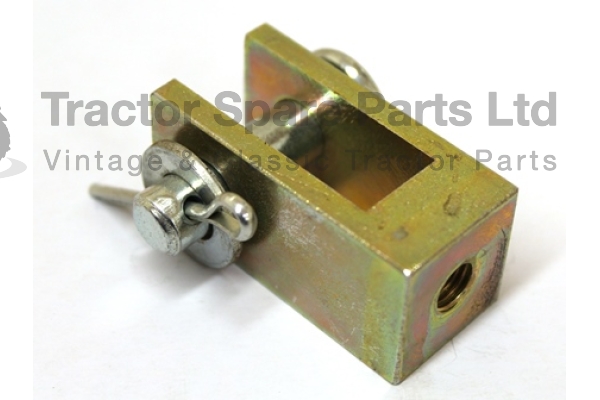

CTJ8057 - Clutch and brake master cylinder fork complete with pin, washer and split pin.
CTJ8057 - Fork (note old part no CTJ5431)
PC110481 - Pin (note old part no CLZ622)
WA110061 - Washer
PS606120 - Split pin
Used on both the brake and clutch master cylinder for the Leyland and Marshall tractors.
Note: When ordering a fork for brake master cylinder, some tractor models will require a longer pin CLZ633 (this pin is 2" 50mm long to attach to the return spring).
Thread size 5/16 UNF
Cross hole 10mm (3/8")
Fitted to the following tractors -
Leyland 245, 262, 462, 272, 472, 282, 482
Leyland 502, 602, 604, 702, 704, 802, 804
Marshall 502, 602, 604, 702, 704, 802, 804, 904XL, 754, 854, 954XL

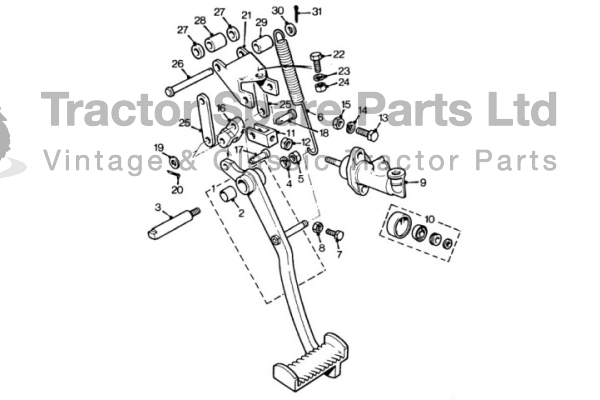

See item 11 on the diagram
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
Product images are for illustrative purposes only and may not always be an exact representation of the product.
