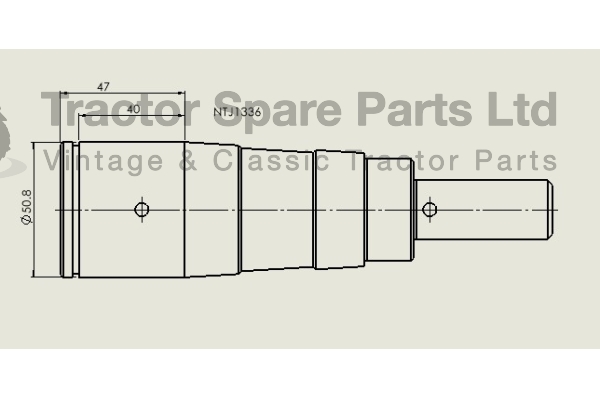

NTK1336 - Steering king post, located directly under the diesel tank (also referred to as centre post). Post outside diameter 2" (50.8mm), replaces old part number CTJ5537.
See ATJ4322 and ATJ4341 for bushes
Fitted to the following tractors see note below for these models:
Nuffield 3/45, 4/65, later models only (non power-assisted steering models)
Leyland 344, 384, later models only (non power-assisted steering models)
Also fitted to the models below as standard:
Leyland 253, 245, 255, 270 (non power-assisted steering models)
Leyland 245, 262, 272, 282 (fitted with standard power steering)
Leyland 502, 602, 702, 802 (fitted with standard power steering)
Marshall 502, 602, 702, 802 (fitted with standard power steering)
For grease nipples, see part numbers LN030051 and LN010061
See ATJ4265 for steering arm assembly.

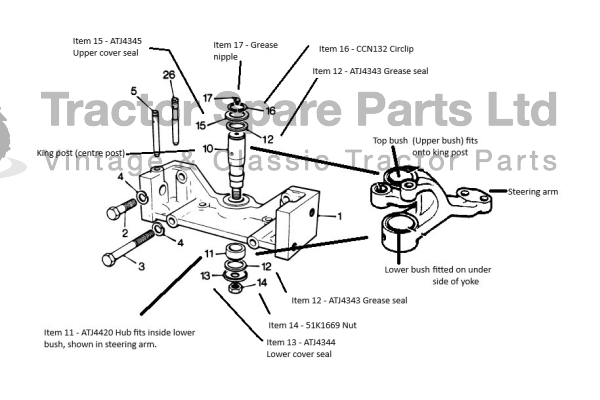

For a larger diagram Press here
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
Product images are for illustrative purposes only and may not always be an exact representation of the product.
Nuffield 3/45, 4/65, Leyland 344, 384 on some early models there was a different king post fitted, always check sizes for these models before ordering, for the other option see ATJ4342
