ATJ3947 - Pivot Pin

Need it delivering elsewhere? Click here

---

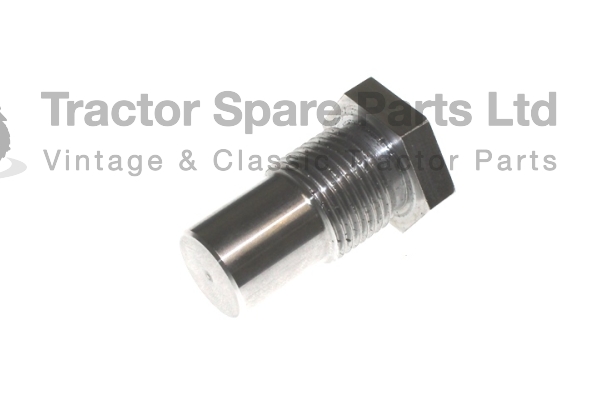

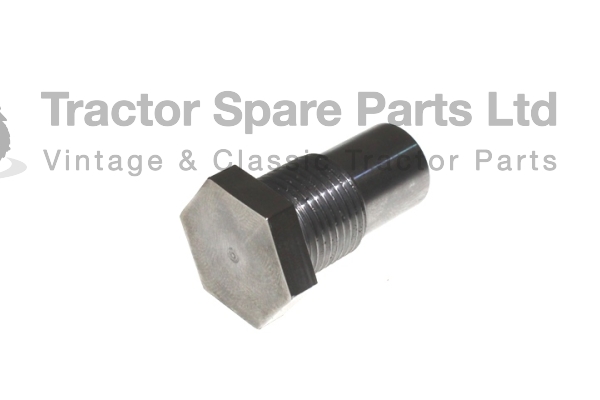

ATJ3947 Pivot Pin for Anchor Bracket and Depth Control

Quality replacement pivot pin used in the anchor bracket and depth control linkage assembly on a wide range of Nuffield and Leyland tractors.

This pin forms part of the hydraulic linkage mechanism, providing a durable pivot point for smooth operation of the depth control system. It is commonly replaced during hydraulic linkage repairs, overhaul work and tractor restorations.

Important Information

• Used on the anchor bracket and depth control assembly
• Quantity required varies depending on tractor model

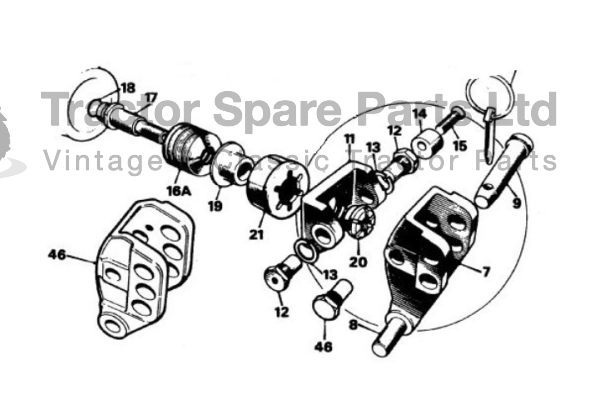

• For identification and fitting location, see Item 46 on the parts diagram

Quantity used per tractor:

Nuffield 3DL, 4DM, 342, 460, 10/42 and 10/60

• 1 x ATJ3947
• 1 x ATJ6103

Nuffield 3/45 and 4/65

• 2 x ATJ3947

Leyland Models (Serial Number C155082 onwards)

• 2 x ATJ3947

Early models were fitted with:

• 2 x ATJ6500 Pivot Pins

Please check your tractor serial number before ordering.

Applications

Nuffield Tractors

• Nuffield 3DL
• Nuffield 4DM
• Nuffield 342
• Nuffield 460
• Nuffield 10/42
• Nuffield 10/60
• Nuffield 3/45
• Nuffield 4/65

Leyland Tractors

• Leyland 344
• Leyland 384
• Leyland 253
• Leyland 245
• Leyland 255
• Leyland 270
• Leyland 262
• Leyland 272
• Leyland 282
• Leyland 462
• Leyland 472
• Leyland 482

(Serial number C155082 onwards)

Features

• Quality replacement pivot pin
• Suitable for anchor bracket and depth control assemblies
• Helps maintain correct hydraulic linkage operation
• Manufactured for reliable fit and long service life
• Ideal for repairs, maintenance and restoration work

Associated Parts

• ATJ6103 – Companion pivot pin used on selected Nuffield models
• ATJ6500 – Early-type pivot pin fitted to earlier tractors

Additional Information

Wear in pivot pins and linkage assemblies can lead to excessive movement, inaccurate depth control operation and increased wear on surrounding components. Replacing worn pins helps restore correct linkage geometry and reliable hydraulic performance.

This component is commonly fitted during hydraulic linkage rebuilds and tractor restoration projects.

Ideal for customers searching for Nuffield depth control pins, Leyland hydraulic linkage pins, ATJ3947 pivot pins, anchor bracket pins, tractor hydraulic linkage parts and vintage tractor hydraulic components.

We specialise in quality parts for Nuffield, Leyland and Marshall tractors and aim to supply reliable tractor spare parts that fit correctly and perform reliably.
