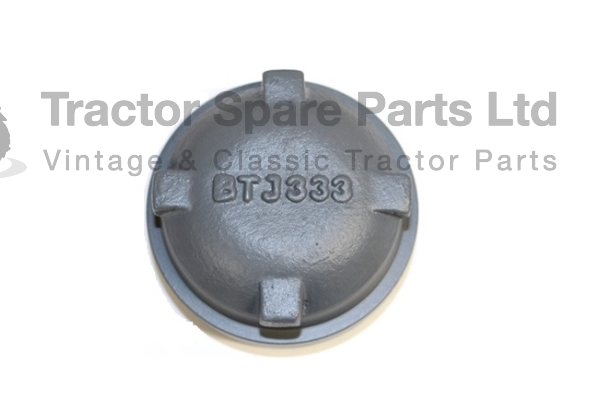

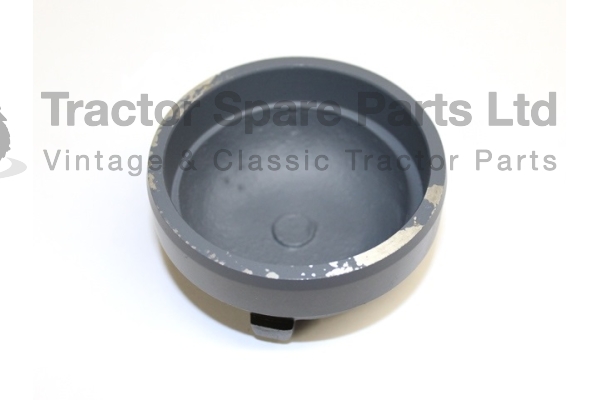

BTJ333 - Cap Final Drive Shaft

Quality replacement final drive shaft cap suitable for later Nuffield, Leyland and Marshall Lightweight tractors.

This cap is fitted to the final drive shaft assembly and helps retain and protect the shaft components within the final drive housing. The final drive assembly transfers power from the gearbox to the rear wheels, making it an important part of the tractor transmission and rear axle system.

Suitable for the following tractors:

• Nuffield 4/25
• Leyland 154
• Leyland 184
• Leyland 235
• Leyland 302
• Marshall 302

Important:

This cap is fitted to tractors with serial numbers:

• 16D-1743 onwards

Please check the outside diameter of your existing cap before ordering, as different versions were fitted during production.

Technical specification:

• Outside diameter: 74.6mm (2.94")

Associated parts:

• ATJ2118 O-ring seal (required for installation)

For earlier tractor models, use:

• BTJ19 final drive shaft cap

Features:

• Quality replacement final drive shaft cap
• Suitable for Lightweight tractor final drive assemblies
• Manufactured for reliable fit and durability
• Helps retain and protect final drive shaft components
• Ideal for transmission repairs and restoration work

This cap is commonly replaced during rear axle repairs, final drive overhaul and vintage tractor restoration projects where the original component has become damaged, corroded or lost.

For identification and fitting location, see item number 34 on the parts diagram.

Ideal for customers searching for Leyland 154 final drive parts, Nuffield 4/25 transmission components, Marshall 302 rear axle parts, final drive shaft caps, tractor transmission components and Lightweight tractor restoration parts.

We specialise in quality parts for Nuffield, Leyland and Marshall tractors and aim to supply reliable tractor spare parts and transmission components that fit correctly and perform reliably.
