ATJ7784 - Sleeve rear axle | Tractor Spare Parts

Made in UK

£25.70 exc VAT

Need it delivering elsewhere? Click here

Delivery Information Returns Information

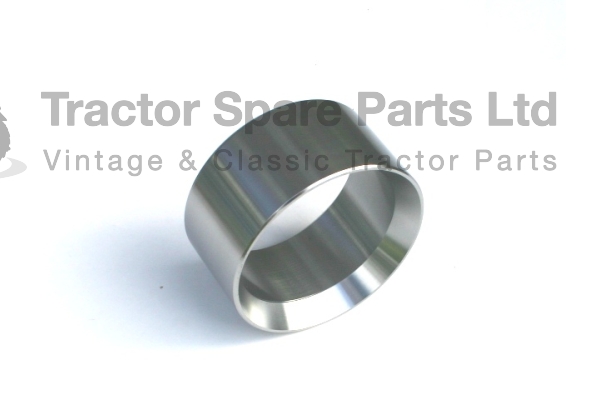

ATJ7784 - Rear axle sleeve - 45mm long

Note: this part requires heating to fit (see workshop manual/note for fitting instructions).

Fitted to the following tractors:
Nuffield 10/42 after serial no 89157, 10/60 after serial no 89157, 3/45, 4/65 with both standard axle and sliding hub type axle.

Check length of sleeve before ordering as early 10/42 and 10/60 were fitted with ATJ7056

Leyland 344, 384, 253, 245, 255, 270, 262, 462, 272, 472, 282, 482 with both standard axle and sliding hub type axle.
Leyland 502, 602, 604, 702, 704, 802, 804 with both standard axle and sliding hub type axle.
Marshall 502, 602, 604, 702, 704, 802, 804, 904XL, 954XL with both standard axle and sliding hub type axle.

JCB part number 98800144

For rear axle seals see part no ATJ1024/K

See item 12 on diagram

Disclaimer

Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.

Note:

Fitting instructions

To remove the old sleeve from the axle, heat the sleeve with the gas bottles until cherry red and it will drop off.

Then allow the half shaft to cool and clean the journal where the sleeve fits with emery cloth.

When fitting the new sleeve you need to heat to a dark straw colour uniformly, a tip we use is to place the sleeve on a steel plate and heat the plate with the gas bottles on the underside (this should get a more uniform heat distribution all over the new sleeve).

Stand the half shaft on the floor and drop the heated sleeve over the shaft, it should fall into place and then cool and shrink to the shaft.
