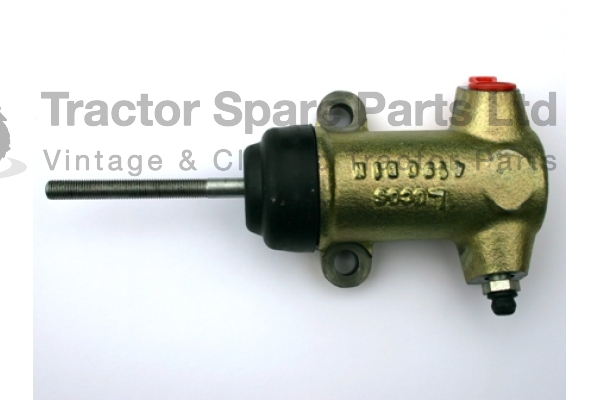

CTJ3126 - Clutch slave cylinder fitted to the Leyland and Marshall tractors.

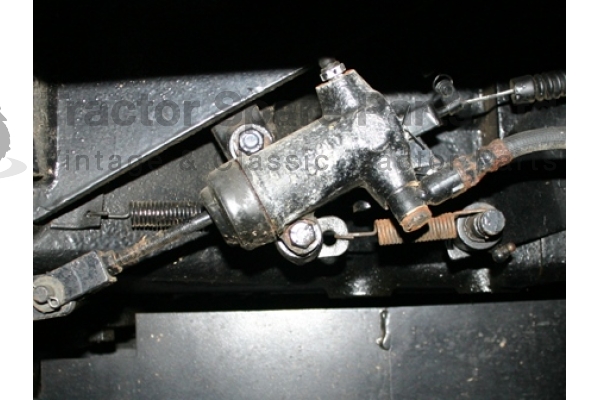

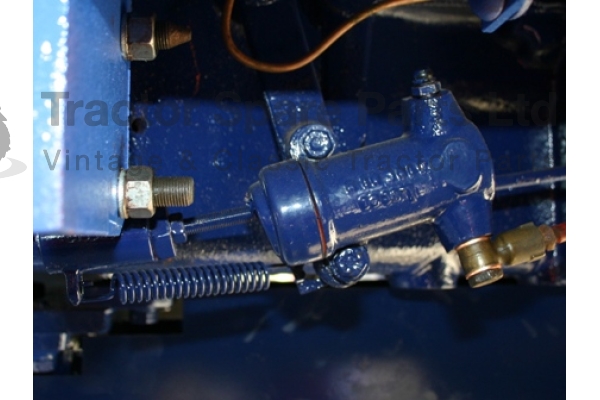

Located under the cab and is attached to the side of the gearbox housing.

Fitted to the following tractors:
Leyland 245, 262, 462, 272, 472, 282, 482
Marshall 502, 602, 604, 702, 704, 802, 804, 904XL, 754, 854, 954XL

Important: Use with DOT 4 clutch & brake fluid.

Slave cylinder repair kit is also available. Part No AAU9847
Slave cylinder banjo bolt is also available. Part No BMK428

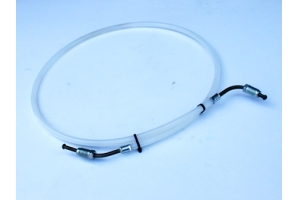

Slave cylinder hose is also available. Part No NTK93 (Marshall tractor only)

Note this slave cylinder also fits a Manitou forklift model MB 25 P (as a whole cylinder - but the repair kits do not fit the original cylinders on the Manitou)

Warning: For optimum results and safety, It is recommended that all work should be carried out by a suitably trained fitter/mechanic and worn units should be replaced by the new units. If it is decided to service a used component particular attention should be paid to the following. If in doubt or difficulty fit a new unit or seek professional help.

Warning: Clean brake parts with only Brake Cleaner or unused Brake Fluid as recommended by the vehicle manufacturer. Use only Brake Fluid recommended by the vehicle manufacturer in the Braking System. If in doubt always consult the vehicle handbook.

Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.

Note:

Diagram showing fitting and corresponding parts for the clutch fluid system (QM cab models only) CTJ3126
