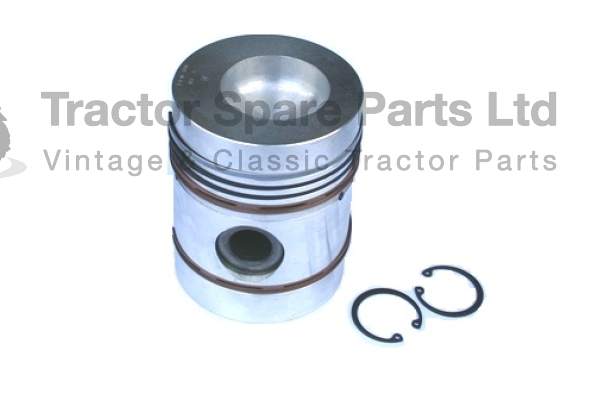

37D976 - Piston and ring set comprised of part No 37D976 & Part No AHM9023
Piston for BMC 2.6, 3.4, 5.1Â engines
Technical Details
Crown diameter 94.51 mm 3.920 in
Compression height 70.80 mm 2.763 in
Overall height 120.72 mm 4.755 in
Chamber diameter 54.36 mm 2.280 in
Chamber depth 23.54 mm 1.062 in
Piston pin diameter 34.92 mm 1.375 in
Number of rings 5
Also see AHM9023 Piston rings set (top ring tapered periphery)
Â
This piston replaces part number AMK1596 - Piston & ring set (95mm)
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
