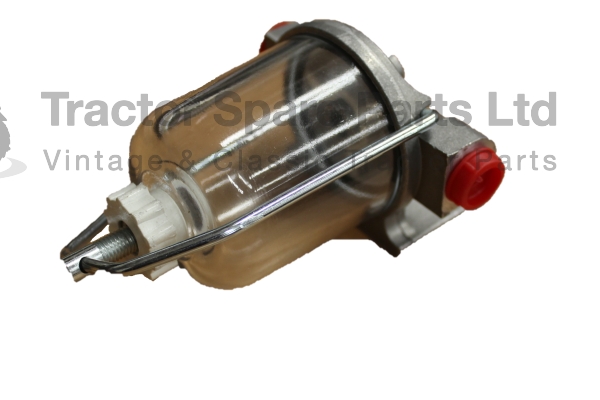

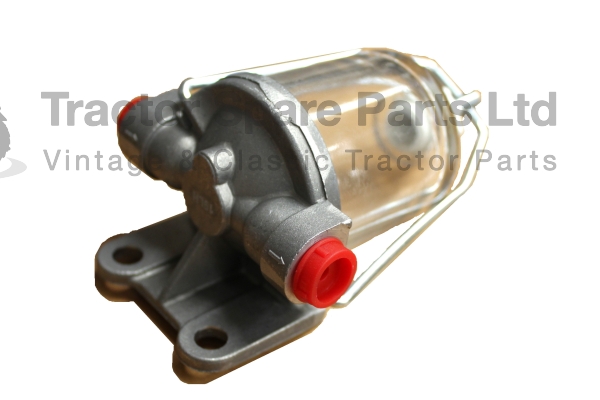

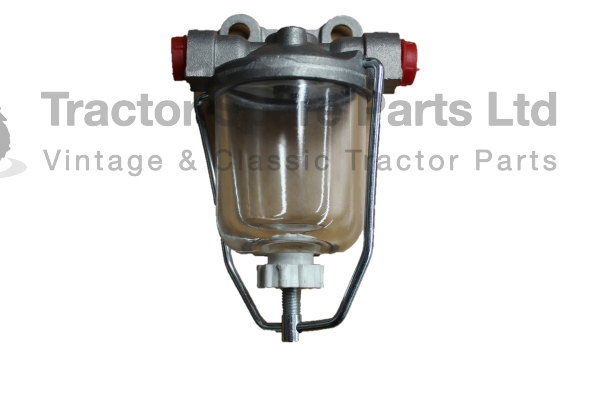

ATJ3097 Alternative fuel bowl assembly

ATJ3097 Fuel Sediment Bowl Assembly (Without Tap)

ATJ3097 is an improved replacement fuel sediment bowl assembly for selected Nuffield tractors. Unlike the original design, this version is manufactured without the integral fuel tap, eliminating one of the most common causes of fuel leaks on these tractors.

The original sediment bowls were fitted with a shut-off tap in the top casting. As these taps wear with age, they are often prone to persistent fuel weeping, even after replacing seals or attempting repairs. This improved design removes the tap altogether, providing a simpler, more reliable solution while retaining the original sediment bowl function.

Please note: This assembly does not include a fuel tap. Please refer to the product photographs before ordering.

Why Choose This Fuel Bowl Assembly?

• Improved design without the original shut-off tap
• Eliminates a common source of fuel leaks
• Direct replacement for the original sediment bowl assembly
• Clear glass bowl allows easy inspection of fuel condition
• Ideal for tractors where the original tap continually weeps fuel

Important Information

• This assembly is supplied without a fuel tap.
• Please study the product photographs before ordering to ensure this design is suitable for your tractor.
• The glass sediment bowl is clear. It may appear brown in some photographs due to the background and lighting.

Dimensions

• Overall height: 58 mm
• Height to the clamp locating dimple: 56 mm

Please compare these dimensions with your existing assembly before ordering.

Fitted to the following tractor models

Nuffield

• 342 (from serial number 52921 onwards)
• 460 (from serial number 52921 onwards)
• 10/42
• 10/60

Technical Notes

The sediment bowl forms the first stage of the tractor's fuel filtration system, allowing water and heavier contaminants to settle in the glass bowl before the fuel reaches the main fuel filter and injection system.

On the original assemblies, the shut-off tap incorporated into the top casting can become worn after many years of use. Even when new seals are fitted, these taps are well known for developing persistent fuel weeps that can be difficult to eliminate completely.

This improved replacement assembly removes the tap entirely, simplifying the design and eliminating one of the most common causes of leakage. For many owners, it provides a more reliable long-term solution while retaining the original function of the sediment bowl.

Before ordering, please compare the dimensions of your existing assembly, as tractors may have been modified during their working lives.

We specialise in replacement fuel system components for classic Nuffield, Leyland and Marshall tractors, supplying quality parts that combine dependable performance with practical improvements where appropriate.
