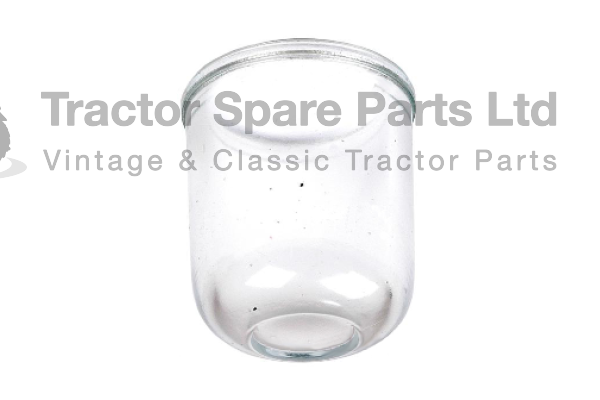

27H2268 is a replacement clear glass fuel sediment bowl for selected Nuffield, Leyland and BMC applications. It is a direct replacement for damaged or broken glass bowls fitted to the original fuel sediment bowl assembly, allowing you to replace only the glass rather than the complete assembly.
The clear glass construction allows you to easily inspect the fuel for water, rust or other contaminants, helping to identify potential fuel system problems before they reach the fuel filter and injection system.
Please check the dimensions carefully before ordering.
There are different fuel sediment bowls fitted across the Nuffield range, so it is important to compare your existing bowl with the dimensions below.
This glass bowl is clear. Any colour visible in the photographs is caused by the background or lighting.
For early Nuffield 342 and 460 tractors, please see part number 17H176.
For servicing the original fuel sediment bowl assembly, you may also require:
If your original sediment bowl assembly has developed a persistent leak from the fuel tap, you may wish to consider our:
The fuel sediment bowl forms the first stage of the tractor's fuel filtration system. As fuel passes through the assembly, heavier contaminants and water settle in the glass bowl before the fuel reaches the main fuel filter and injection system.
Because the bowl is manufactured from glass, it can become chipped or cracked through accidental damage or overtightening of the retaining clamp. Fortunately, in many cases only the glass bowl needs replacing, allowing the original sediment bowl assembly to be retained.
The original sediment bowl assembly is fully serviceable. In addition to replacing the glass bowl, you can also renew the glass bowl gasket (27H1330), filter gauze (27H2272) and fuel tap cork seal (17H172) to restore the assembly to good working order.

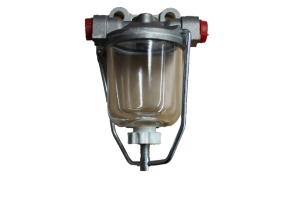

If the original fuel tap has developed a persistent leak that cannot be cured by replacing the cork seal, many owners choose our ATJ3097 Improved Fuel Sediment Bowl Assembly. This redesigned assembly eliminates the fuel tap altogether, removing one of the most common causes of fuel weeping. Please note that the glass bowl used on the original assembly is not interchangeable with the ATJ3097 assembly.
Before ordering, always compare the dimensions of your existing bowl. The overall height and the depth of the locating dimple are particularly important, as different sediment bowl assemblies were fitted during production and some tractors may have been modified during their working lives.
We specialise in replacement fuel system components for classic Nuffield, Leyland and Marshall tractors, supplying quality replacement parts to help keep these classic machines reliable and easy to maintain.
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
Product images are for illustrative purposes only and may not always be an exact representation of the product.
