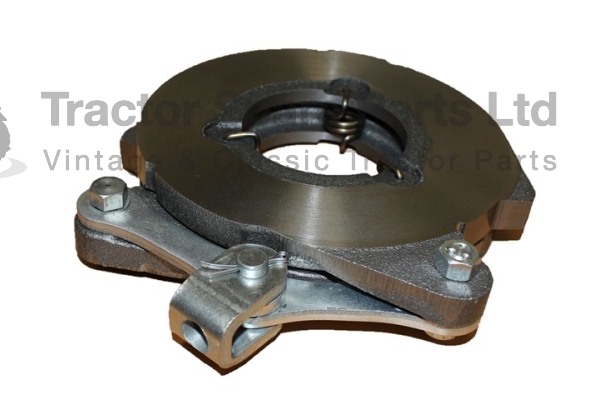

37H1567/A is a newly reproduced premium brake actuator (brake expander unit) for Nuffield and Leyland tractors fitted with dry brake discs. Also referred to as the brake actuating unit, this component has been reproduced after the previous supplier ceased manufacturing them, ensuring these tractors can continue to be maintained for many years to come.
Unlike many replacement brake actuators currently available, our actuator has been manufactured to the original specification, including the correct overall thickness of 32.5 mm. This is a critical dimension that allows the brake mechanism to operate correctly and helps achieve proper brake adjustment and braking performance.
Our actuator is also supplied complete with the internal linkage, making it a more complete replacement than many alternatives currently available.

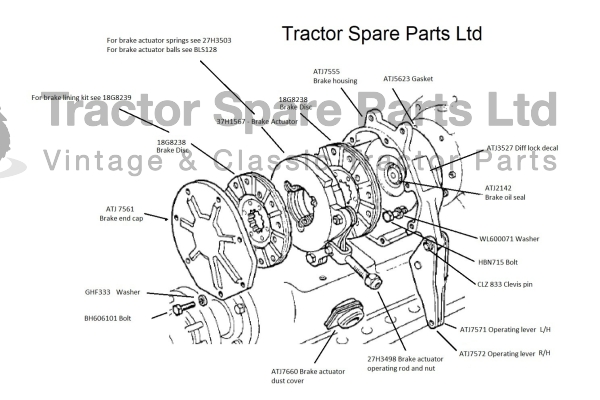

For a diagram showing the individual parts of the braking system click here.
This actuator replaces the original 37H1567 brake actuator.

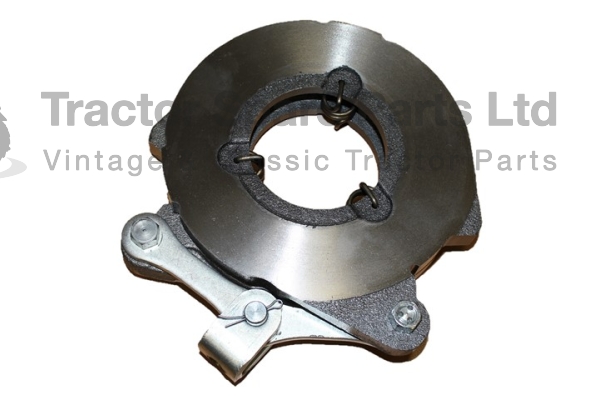

The basic unit includes:

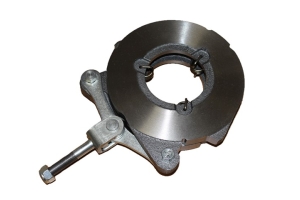

This basic unit does not include the operating rod (27H3498) or the adjusting nut. If you require the complete assembly with the operating rod fitted, please see part number 37H1567.
Sold individually. Two brake actuators are required per tractor.
The brake actuator converts the movement of the brake linkage into the expanding action that forces the dry brake discs apart. Because this component is continually subjected to high loads, the operating faces, balls and internal components gradually wear over time, resulting in reduced braking efficiency and difficulty obtaining correct brake adjustment.
One of the most important dimensions of the actuator is its overall thickness. Many replacement units available today are manufactured thinner than the original specification, reducing the available movement within the brake assembly and making it difficult to achieve the correct brake adjustment.
Our brake actuator has been manufactured to the original 32.5 mm thickness, ensuring the brake mechanism operates as intended and providing improved brake performance when compared with undersized replacement units.
As an added benefit, our actuator is supplied complete with the internal linkage, making it a more complete replacement assembly than many other units currently available.
For a full breakdown of the brake assembly and associated components, please refer to the brake parts diagram using the link above.
We specialise in replacement brake components for classic Nuffield, Leyland and Marshall tractors, including many newly manufactured parts developed to replace obsolete components while maintaining the original engineering standards.
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
Product images are for illustrative purposes only and may not always be an exact representation of the product.
